Characteristic

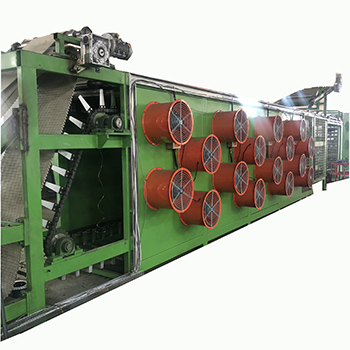

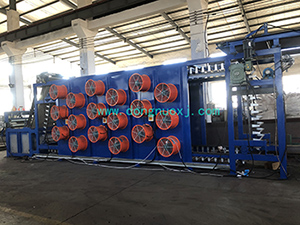

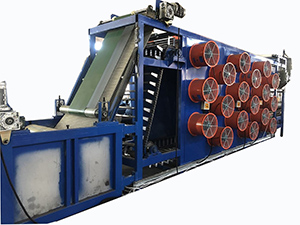

1. The batch cooler is used for cooling, folding and depositing the rubber strip that comes from the open mills or twin screw extruder. 2. Structure characteristics: There are two structures types: Overhead and floor-standing types. 3. The clients can choose high or low disposition according to the practical requirments. 4. The high disposition batch-off line has hydraulic auto wig wag section, which can battle the rubber strip tidily, the strip tidy ratio (< =100mm); 5. There are three working positions for auto entering and outputting of material tray. 6. Auto rubber collecting device; Auto cutter device; It has high automatization and can realize unattended operation.
FEATURES AT A GLANCE

1- take-off device is off the ring type conveyor belt with guide strip and without any union or joint, and equips with printer. Take-off conveyor belt, lifting and dip-in wire mesh belt all share one same freauency conversion AC speed regulating motor, which the conveying speed could be adjustable. 2- lifting bar is driven by one set cycloid pin wheel speed reducer through AC frequency conversion and the bar speed is synchronous as the speed of lifting device. 3- the sheet is uniformly coated with the lubricator by dipping without polluting the environment. Its cooling effect is better than the spraying. 4- the hanging up area is fully closed, which adopts the blower to blow the sheet at a slant. So it improves the air flowing direction and cooling effect.

Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
No
Model
XPG-600
XPG-800
XPG-900
1
Max. Rubber Sheet Width (mm)
600
800
900
2
Rubber Sheet thickness (mm)
4-10
4-10
6-12
3
Temperature over room temperature after rubber sheet cooling (℃)
10
15
5
4
Linear Speed of taking-in conveyor (m/min)
3-24
3-35
4-40
5
Linear speed of sheet-hanging chain (m/min)
0.82
0.117-1.17
4-40
6
Hanging height of the sheet hanging bar (m)
1000-1500
1000-1500
1400
7
No. of cooling fans (set)
12
20
18-26
8
Total power (KW)
13.7
28.8
18-34
