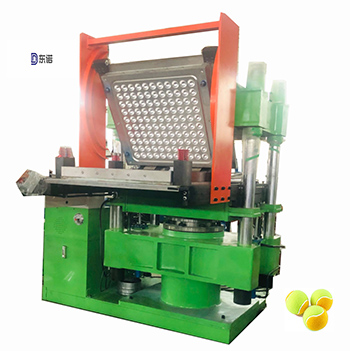

china automatic tennis ball making machine tennis Ball Vulcaniizng Press

Machine tennis ball manufacturing machine

This machine is the main device which is used for pressing and forming various rubber

model and non-model products.

tennis ball making machine

It can also beused for pressing various thermosetting plastic products.

It has independent drive mechanism and electrical system, adopts button to centralized control. Working pressure and
heating temperature can be adjust in the range. It has the function of automatic pressure retrieve and oil pump stops
overtime system. Circuit configuration is more reasonable and reliable. Heating temperature,
vulcanizing time, vulcanizing pressure, hydraulic pressure compensation can be set according to your need, easy to
operate.Hydraulic cylinder adopts to independent oil cylinder structure, easy to exchange. Piston adopts chilled cast
iron, high wearable and long time use. User can configure and select machine type according to the characteristic of products.

Our company can manufacture and design the work surface, tonnage, stroke, hot plate spacing, etc. of the

vulcanizing press according to the customer’s product process and technical requirements to meet customer

needs. Specific matters can be negotiated.

tennis ball making machine

type
XLB-D350x350x2
XLB-D400x400x2
XLB-D500x500x2
XLB-D600x600x2/4
XLB-D750x850x1
nominal mold power(mn)
0.25
0.5
0.8
1
1.6
working layer
2
2
2
2
2
piston stroke(mm)
250
250
250
300
300
plate pressure(Mpa)
2.04
3.13
2.4
4.94/2.78
2.51
main motor power(kw)
1.5
2.2
2.2
2.2
2.2
plate clearance(mm)
125-200
125-200
125-200
125-250
125-250
heating mode
electric oil steam
electric oil steam
electric oil steam
electric oil steam
electric oil steam
configuration
column
column
column
column
column
electric power(kw)
1.8
2.7
3.0
2.7/3.6
4.8

Qingdao Dongnuo Rubber Machinery Co., Ltd. is a professional enterprise that develops and sells rubber machinery.

It was put into production in 2009. It has 8 experienced rubber machinery professional R&D technicians and 2 external

rubber product technical experts from Qingdao University of Science and Technology. 10 CNC machining centers and

various large, medium and small machining equipment, heat treatment equipment and precision testing instruments.

Professionally undertake the production installation and product technical support of NBR rubber foam hot air

vulcanization production line and rubber compound production line. The company’s main products are NBR rubber

foam hot air vulcanization production line, film cooling line, flat vulcanizing machine, open mill, internal mixer, rubber

floor tile forming machine, gym floor mat production line, rubber sealing strip production line, EVA foam vulcanization

machine, waste Tire processing equipment, extruders, etc. The company has passed ISO9001, CE and SGS

certification, and its products are sold all over the country, and are also exported to France, Russia, Japan, South Korea,

Thailand, Egypt, Indonesia, India, Sri Lanka, Nigeria, Chile and more than 40 countries and regions.
